Electronic kit for 5V USB-C battery-powered lamps with smooth E27 Socket - White
Electronic kit for 5V USB-C battery-powered lamps with smooth E27 Socket - White
Available in stock
Request a free personalized consultation.
Description
Description

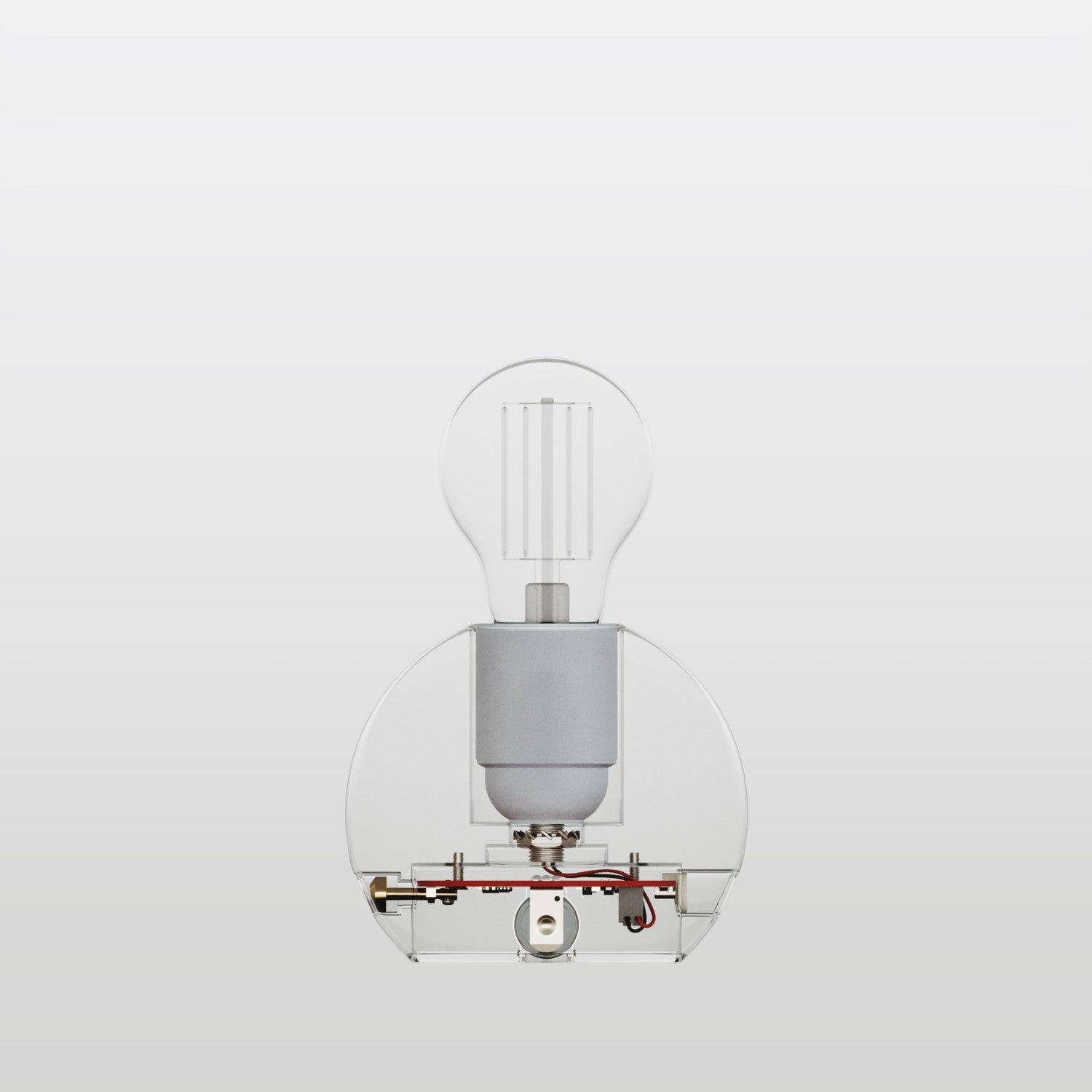

Electronic kit for 5V USB C rechargeable battery-powered lamps designed for creating custom portable lamps. It is a technical solution intended for makers, designers and lamp creators working with bespoke structures, prototypes or 3D-printed lamp bodies.

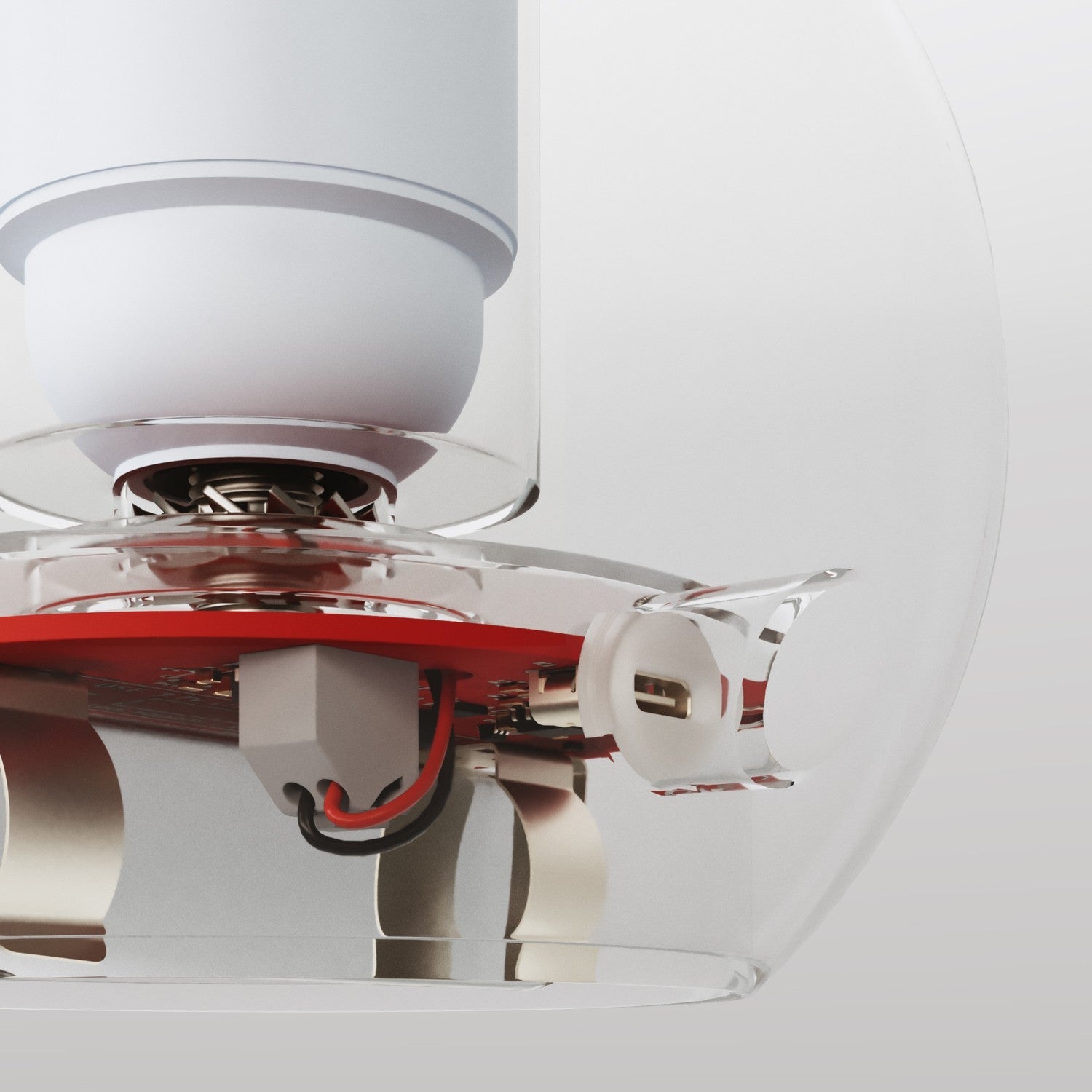

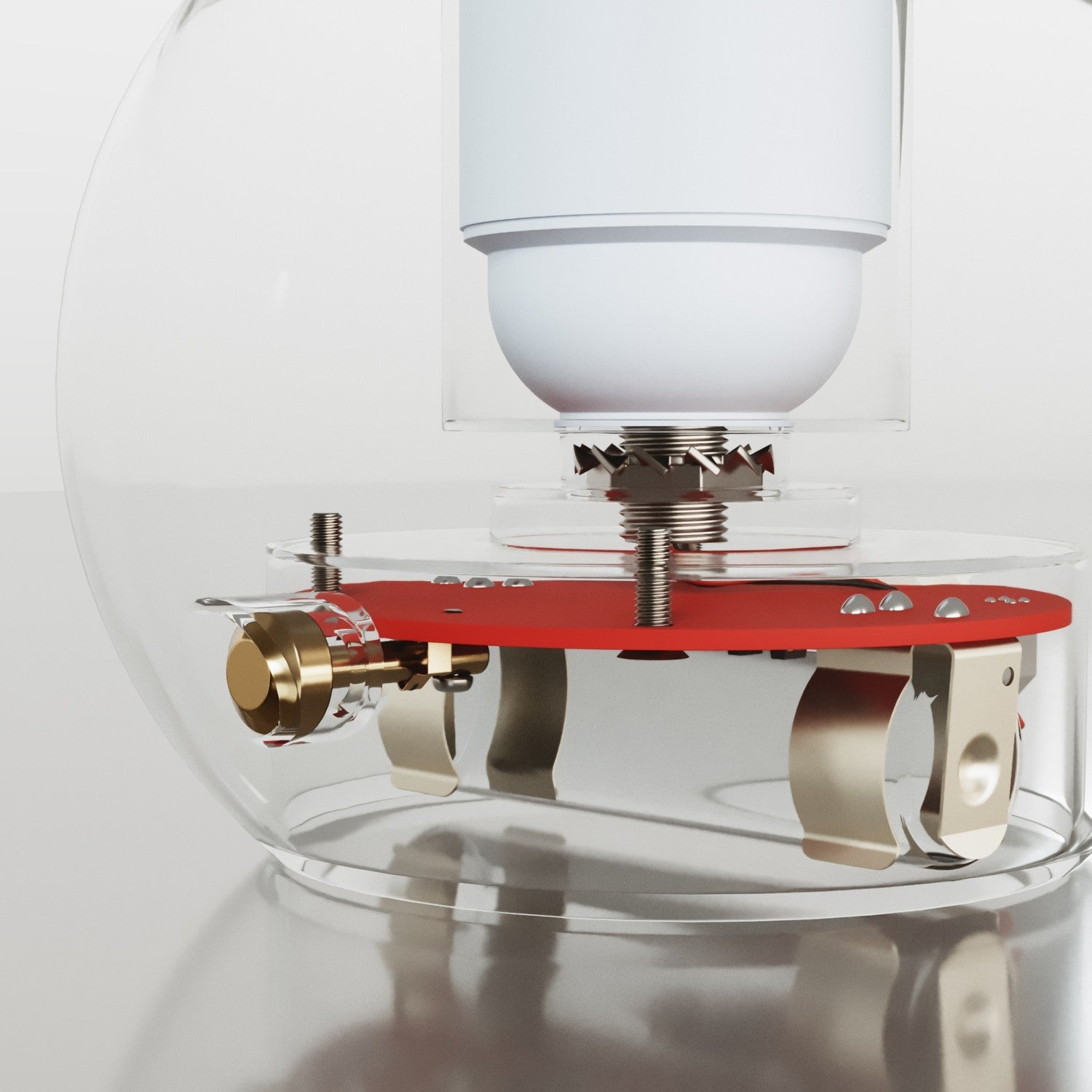

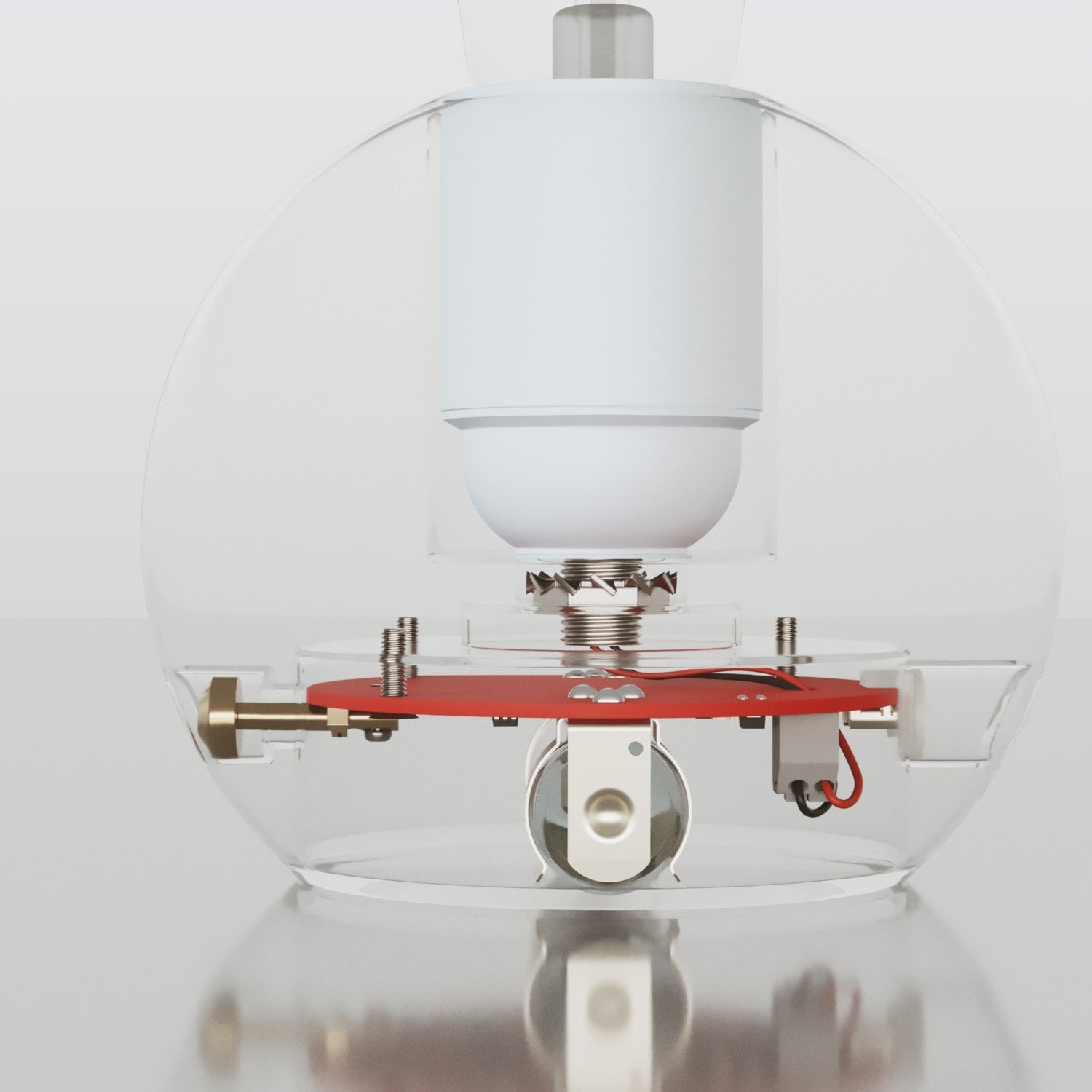

The system is based on a round electronic board with 5V input via USB C and 5V output for powering the light source. The board is connected to the Socket via low-voltage cables, allowing the electronic part to be separated from the Light bulb and enabling flexible management of component placement within the project.

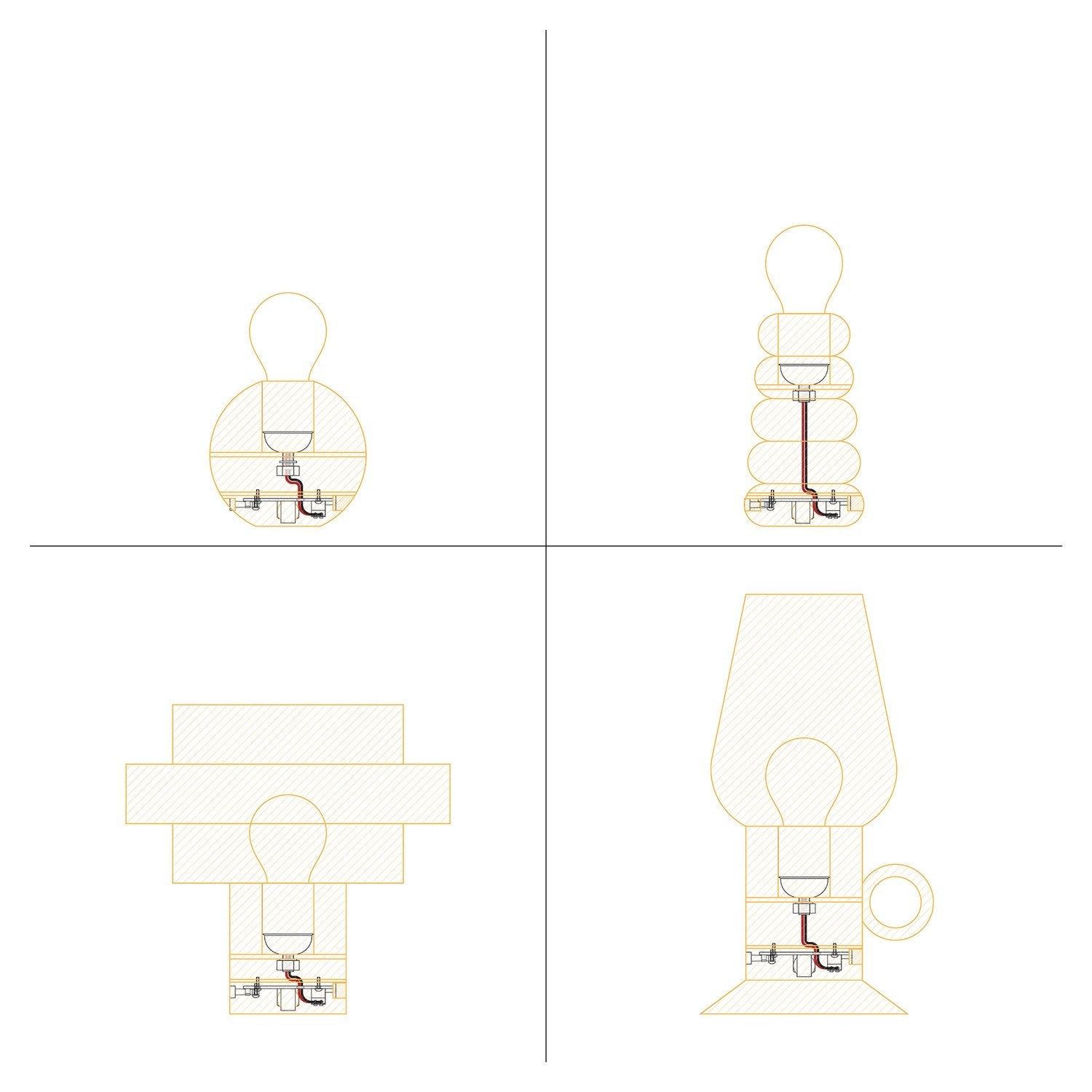

The kit includes a smooth E27 Socket in white thermoplastic, designed to be integrated or hidden inside the lamp body, making it ideal for lamps made with 3D printing, artisanal processes or custom structures.
Light control is managed via a button with three-level dimmer plus OFF, allowing you to easily adjust brightness according to the intended use. The system is compatible with 5V E27 Light bulbs and is suitable for creating functional, repairable and easily maintainable battery-powered lamps.
Assembly requires no soldering or special tools. The connections are designed for quick mounting with a standard screwdriver, making the kit suitable both for prototyping and for small-series production of battery-powered lamps.
Il sistema è compatibile con batterie ricaricabili Li-ion formato 18650, facilmente reperibili e sostituibili quando necessario. La batteria non è inclusa.
Technical specifications:

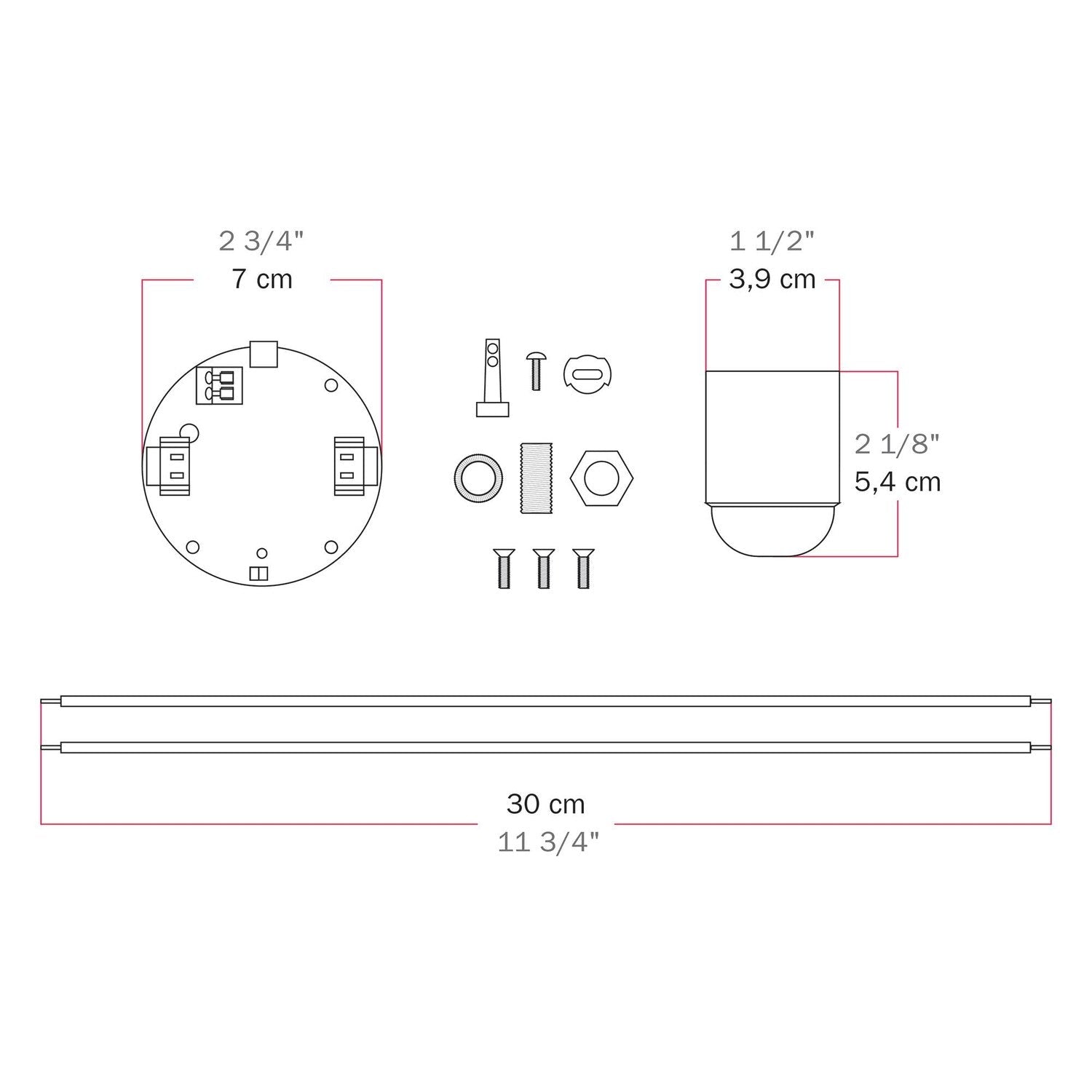

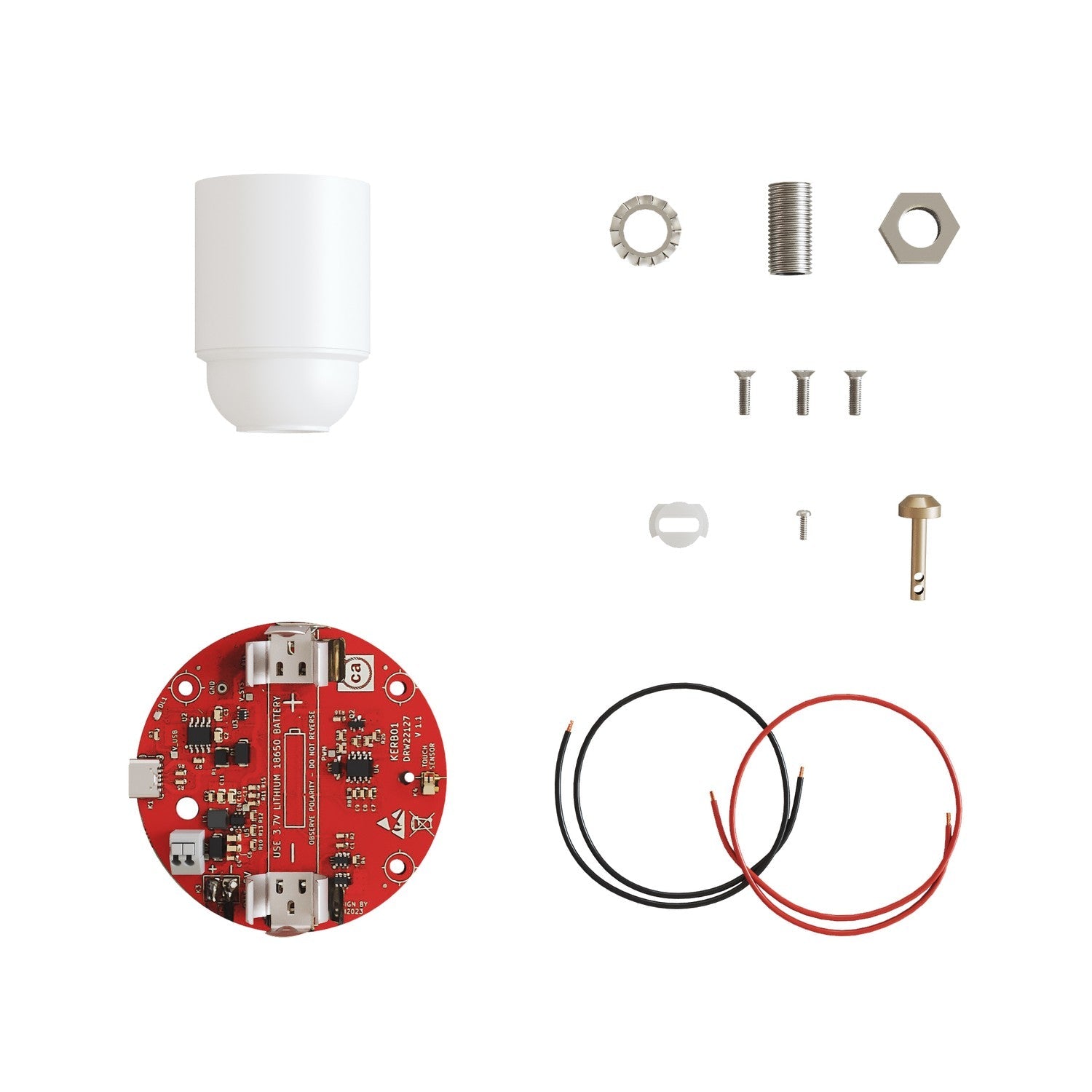

Kit composto da:
- Scheda elettronica rotonda Ø 70 mm con input 5V tramite USB C e output 5V per l’alimentazione della lampadina
- Tasto in ottone Ø 9,5 mm con vite di fissaggio e doppia posizione di montaggio per basi con diametro da 86 mm a 96 mm
- Adattatore in silicone trasparente Ø 12 mm
- Single-core double-insulated red Cord 1x0.75 mm length 300 mm
- Single-core double-insulated black Cord 1x0.75 mm length 300 mm
- Viti di fissaggio M2.5x11 per il montaggio della scheda sulla base
- Metal fixing rod M10x1 length 25 mm complete with nut and washer
- Portalampada E27 liscio in termoplastica
Il sistema funziona esclusivamente con lampadine a 5 Volt.
Batteria Li-ion formato 18650, accessori di ricarica e lampadina non inclusi.
Technical details
Technical details
| Attacco | E27 |
|---|---|
| Materiale | Thermoplastic |
