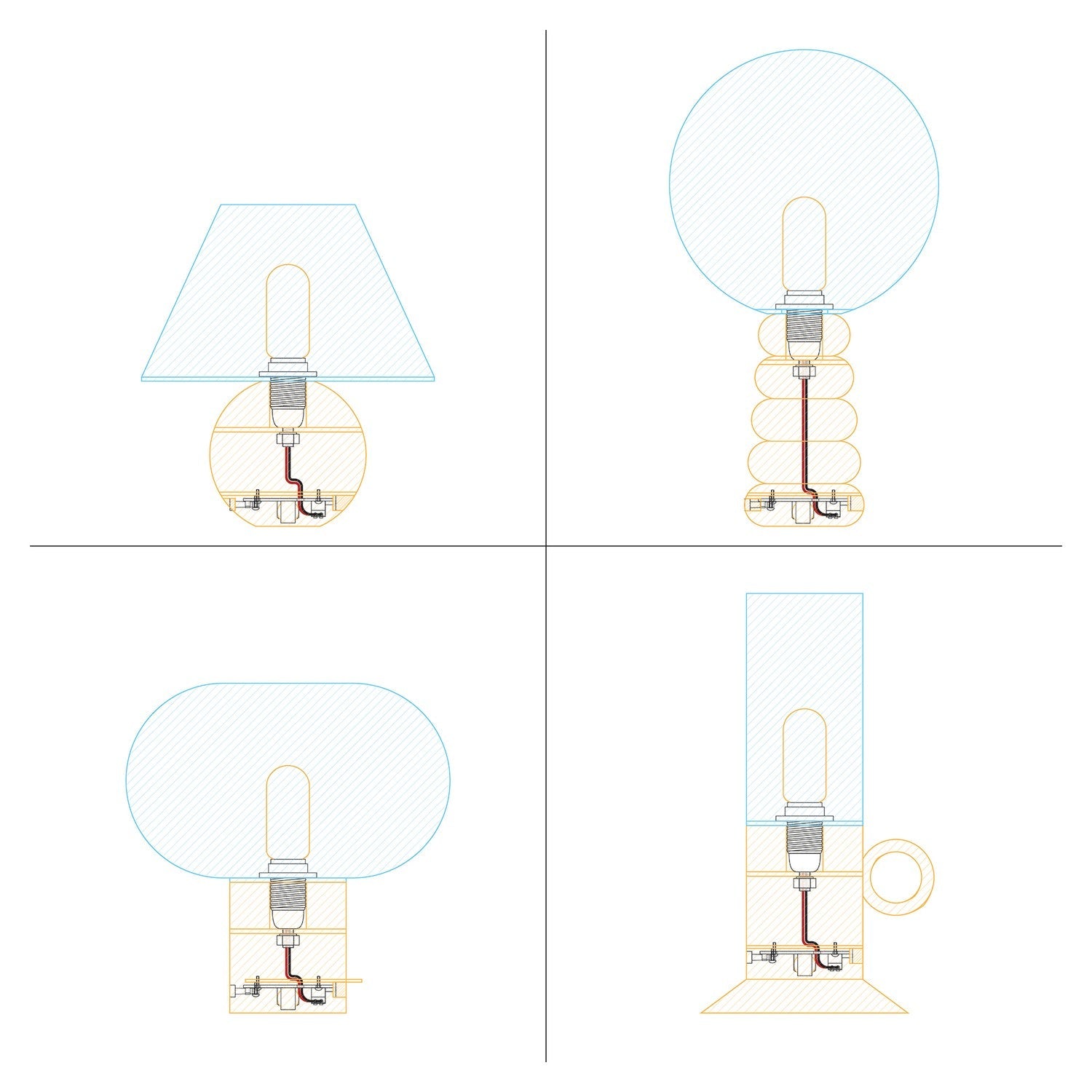

Kit elettronico a batteria ricaricabile 5V USB C progettato per la realizzazione di lampade portatili personalizzate. Una soluzione tecnica pensata per maker, progettisti e creatori di lampade che lavorano su strutture su misura, prototipi funzionali o corpi lampada stampati in 3D.

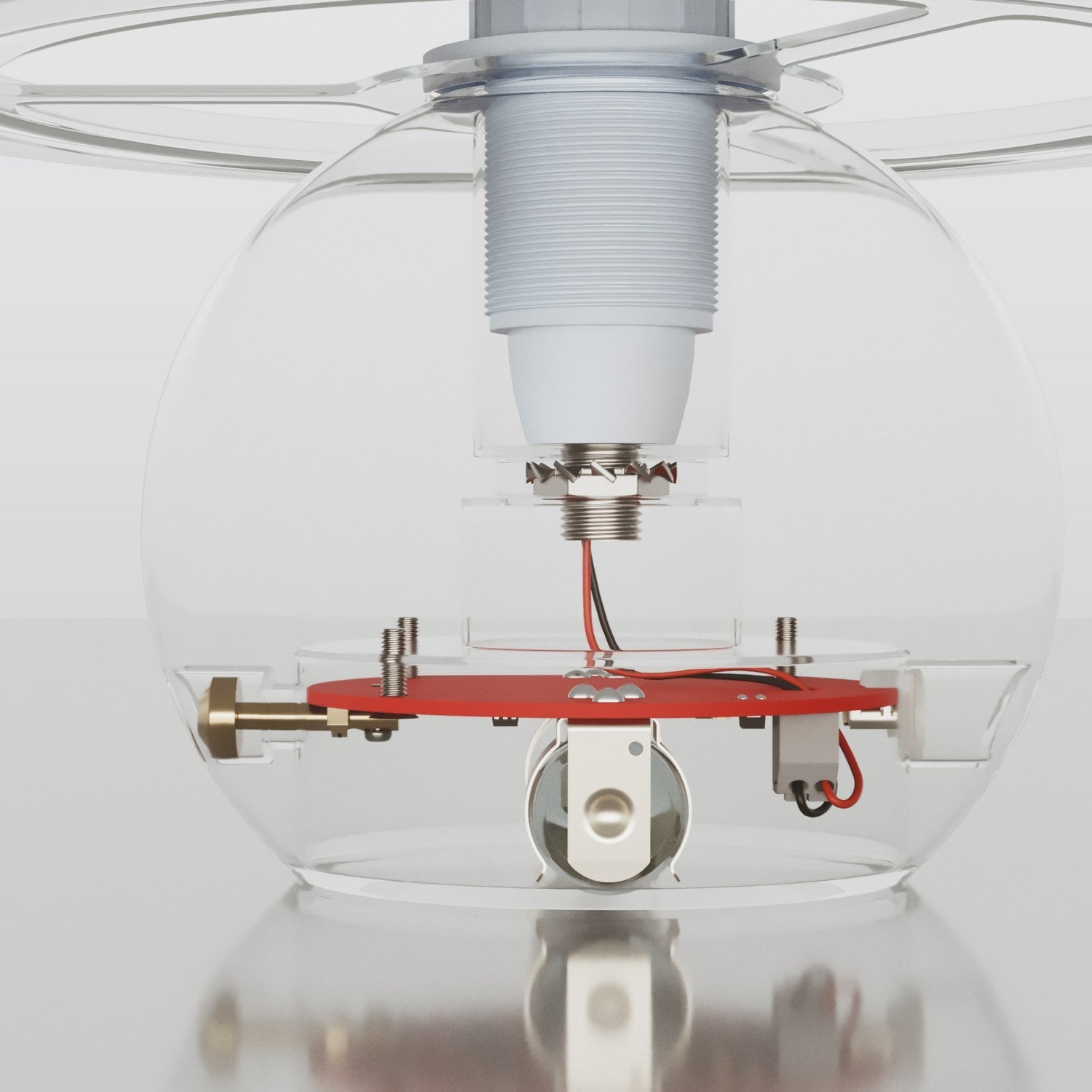

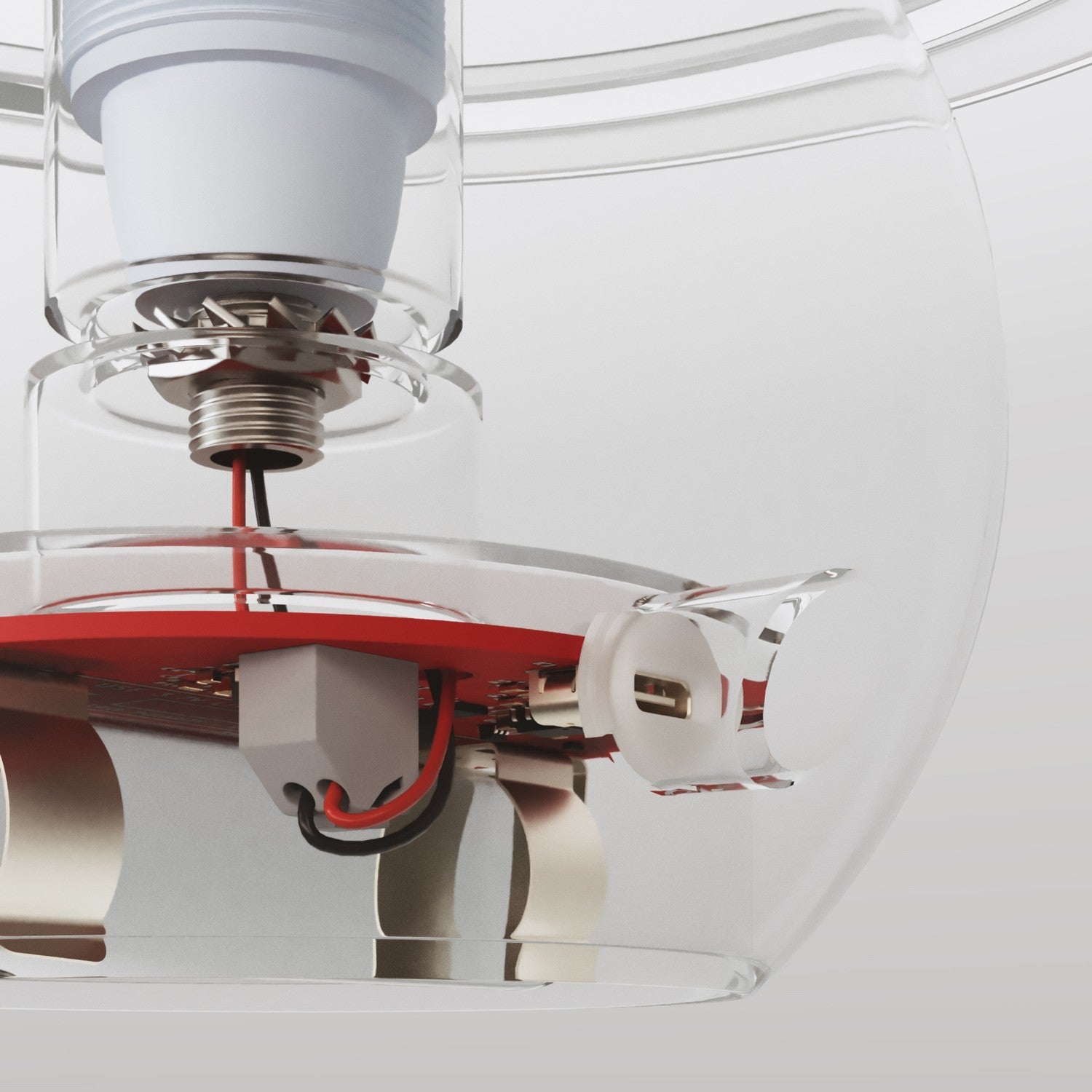

The system is based on a round electronic board with 5V input via USB C and 5V output for powering the light source. The board is connected to the Socket via low-voltage cables, allowing the electronic part to be separated from the Light bulb and enabling flexible organisation of the components within the project.
The kit includes a white threaded E14 Socket in thermoplastic, complete with ring nut, allowing direct attachment of a compatible Lampshade.

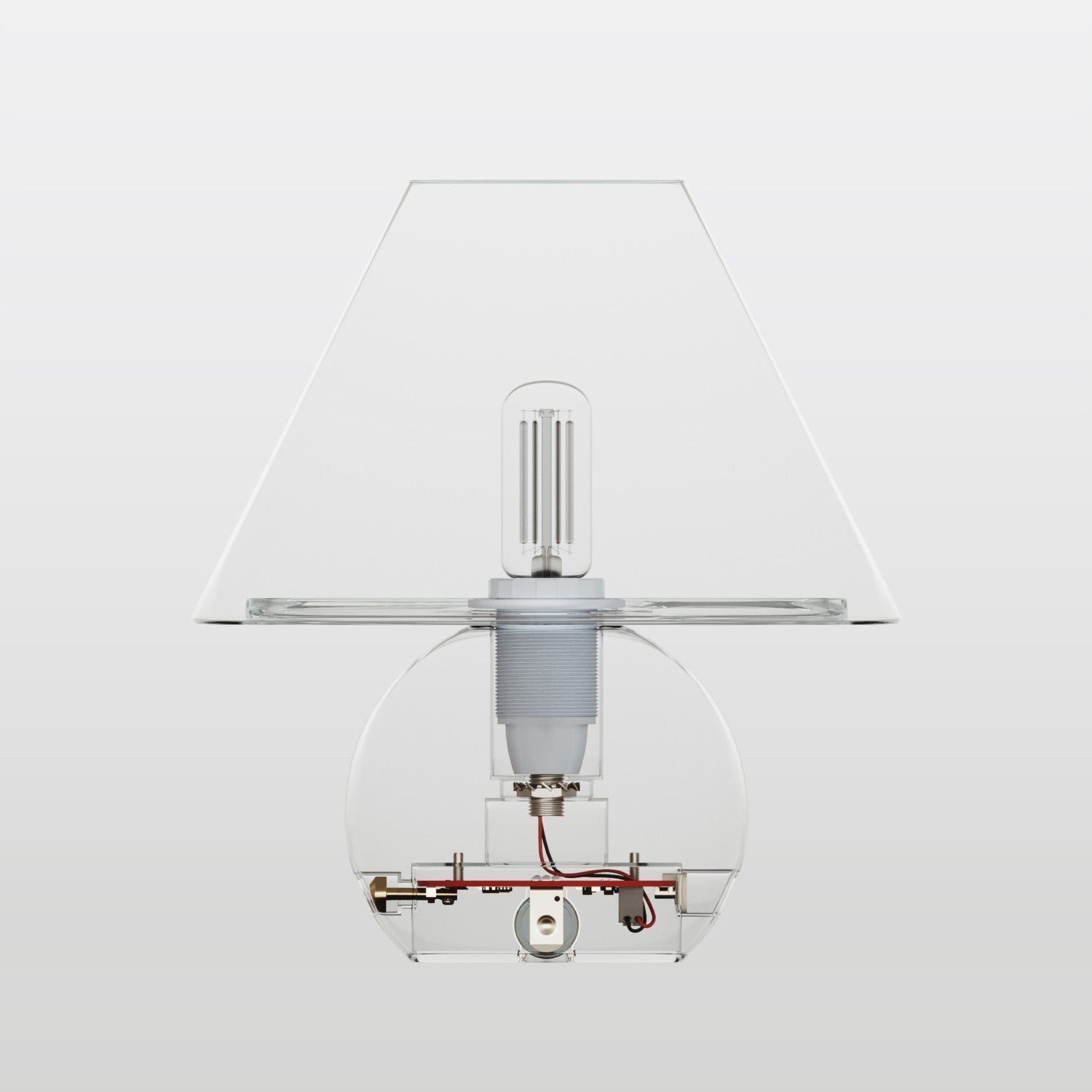

Light control is managed via a push button with integrated dimmer, with three intensity levels plus OFF function. The system is compatible with 5V E14 Light bulbs and is designed for the creation of battery-powered lamps that are repairable and easy to maintain.
L’assemblaggio non richiede saldature né strumenti specifici. Le connessioni sono progettate per un montaggio rapido con un normale cacciavite, rendendo il kit adatto sia alla fase di prototipazione sia alla produzione di piccole serie.
Il sistema è compatibile con batterie ricaricabili Li-ion formato 18650, facilmente reperibili e sostituibili quando necessario. La batteria non è inclusa.
Technical specifications:

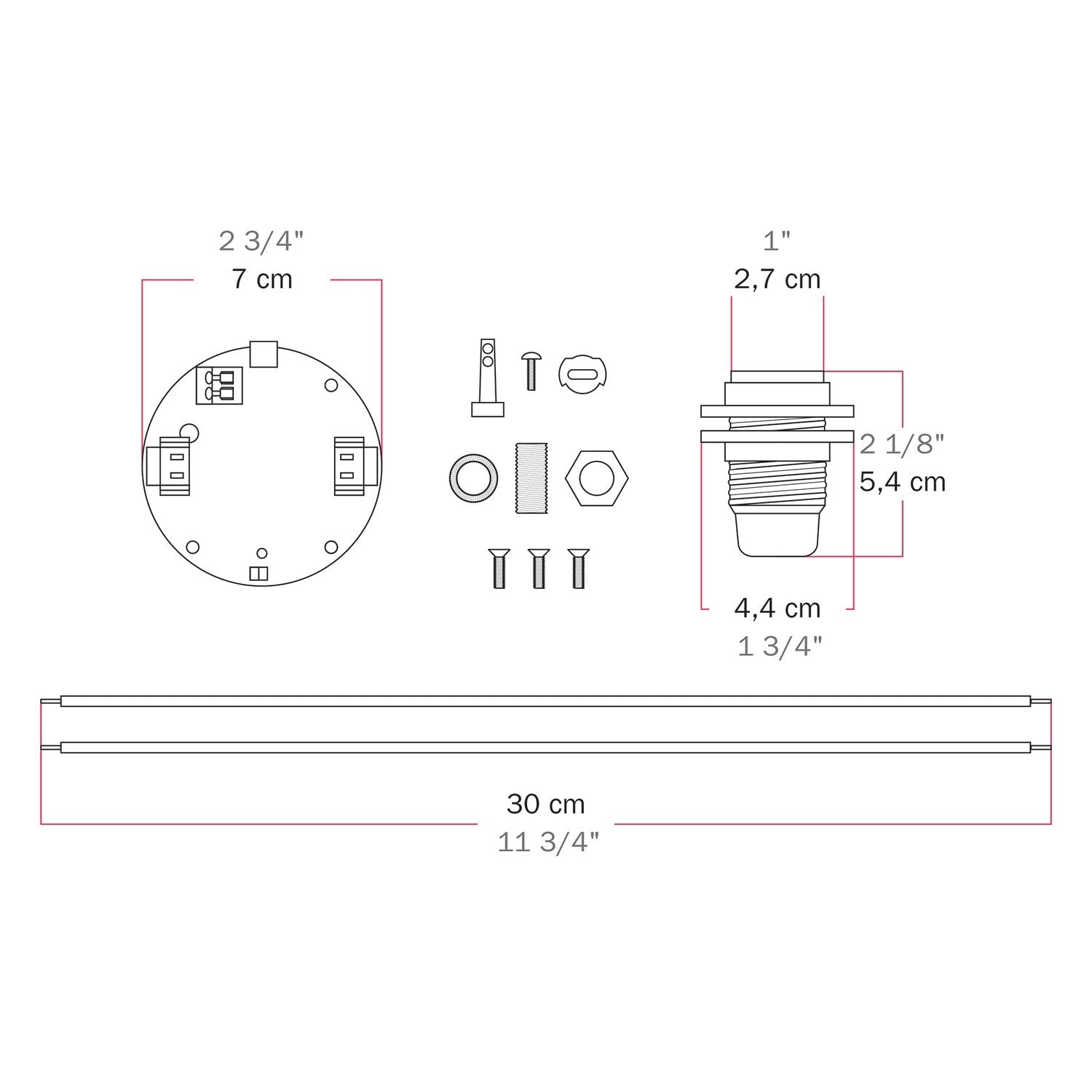

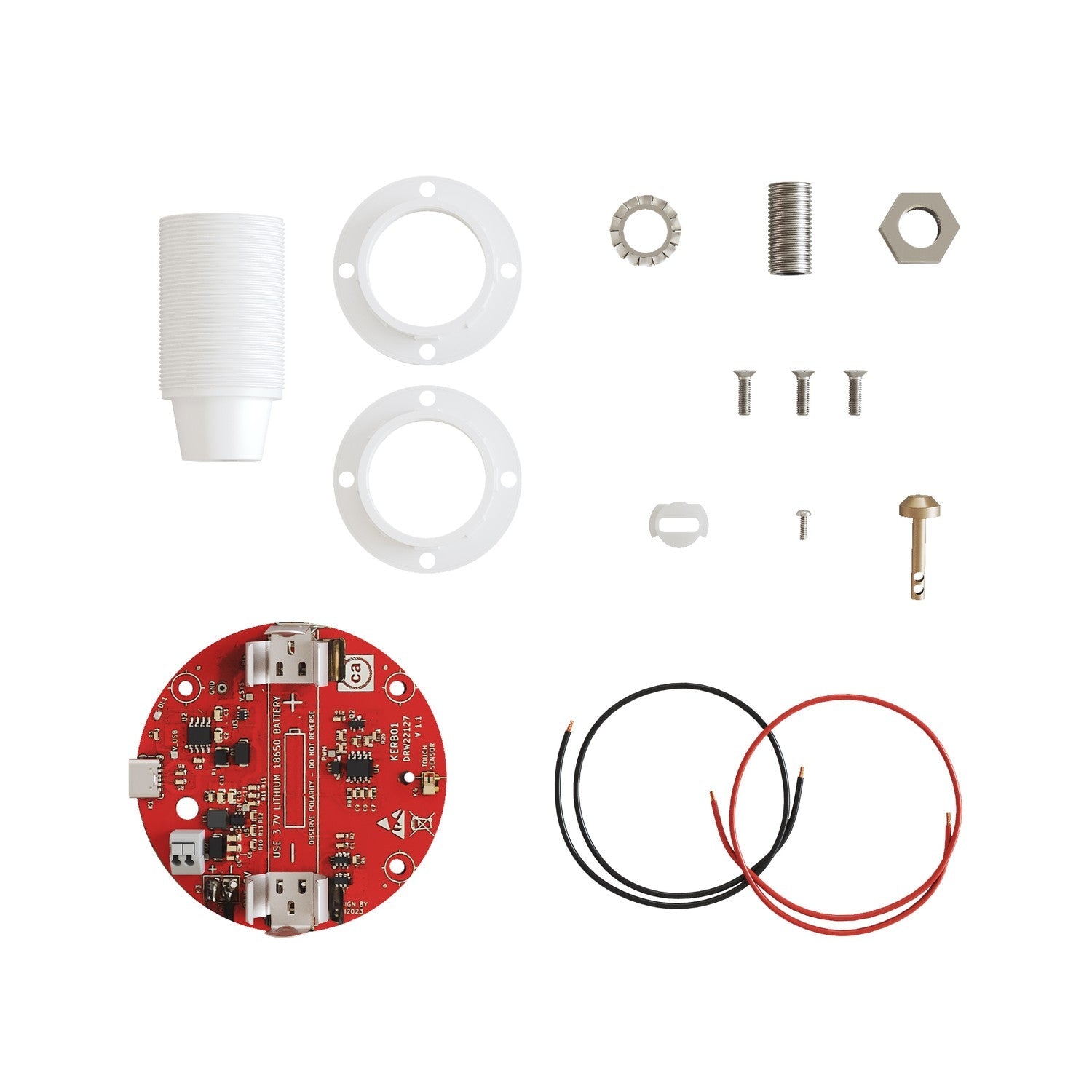

Kit composto da:
- Scheda elettronica rotonda Ø 70 mm con input 5V tramite USB C e output 5V per l’alimentazione della lampadina

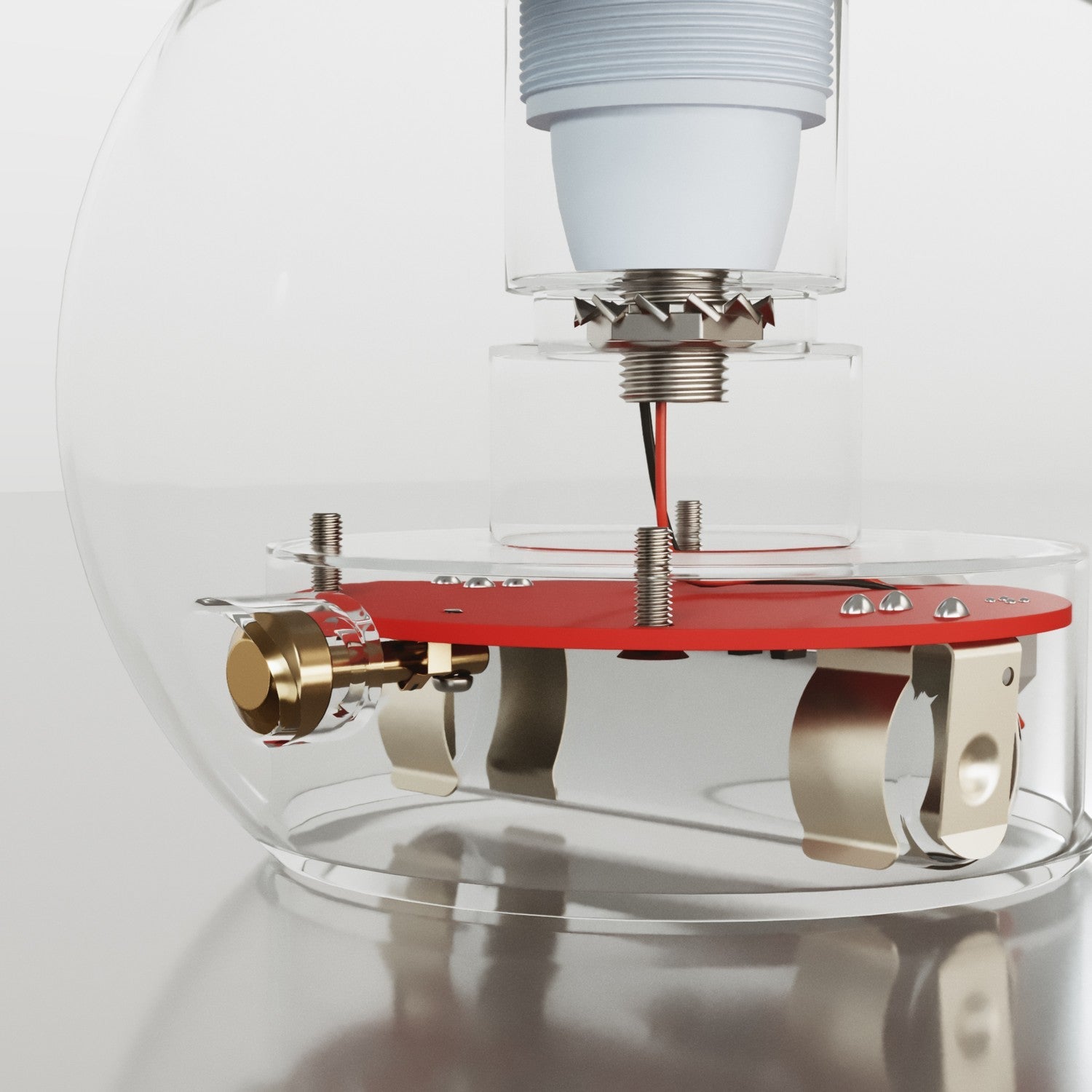

- Tasto in ottone Ø 9,5 mm con vite di fissaggio e doppia posizione di montaggio per basi con diametro da 86 mm a 96 mm
- Adattatore in silicone trasparente Ø 12 mm
- Cavo unipolare a doppio isolamento rosso sezione 1x0,75 mm lunghezza 300 mm
- Cavo unipolare a doppio isolamento nero sezione 1x0,75 mm lunghezza 300 mm
- Viti di fissaggio M2.5x11 per il montaggio della scheda sulla base
- Tige di fissaggio in metallo M10x1 lunghezza 25 mm completa di dado e rondella
- Threaded E14 Socket in thermoplastic with double ring nut
Il sistema funziona esclusivamente con lampadine a 5 Volt.
Batteria Li-ion formato 18650, accessori di ricarica e lampadina non inclusi.
Technical details
Technical details
| Attacco | E14 |
|---|---|
| Materiale | Thermoplastic |
